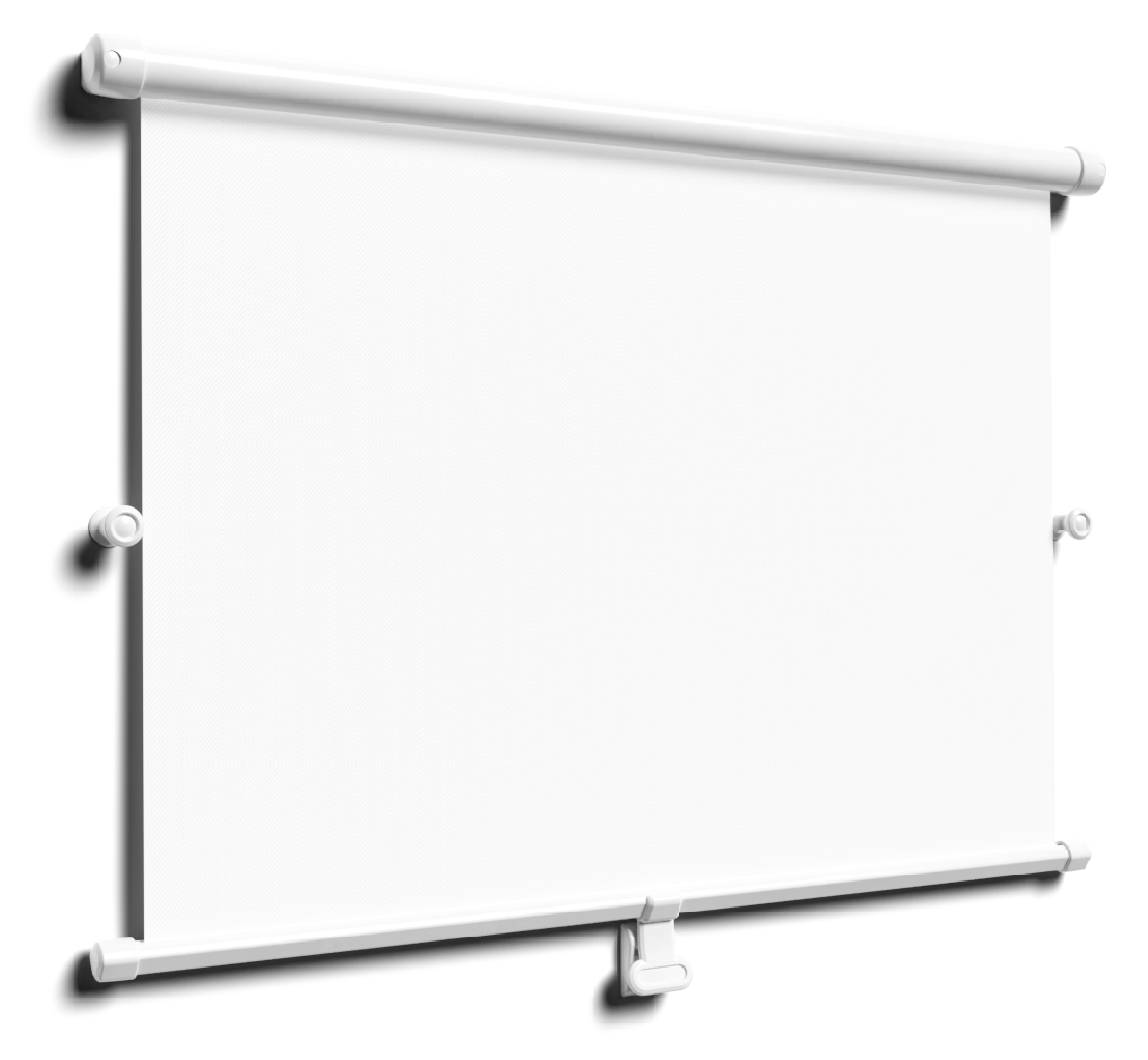

Smart, neat and practical cassette blinds for small hatches, windows and portlights. Engineering Elegance.
- Spring loaded small roller blind in a small slimline cassette with integrated fixing covers
- Water repellent, heat-reflective and 0% light transmission fabric
- Onboard privacy and comfort
- Cabin light and temperature control
- Reduce UV damage and glare
- Handle and hold-down options for convenient use and beautifully neat and tidy stowage
- Optional narrow crossbar for extra compact stowage
- Availabe in white or ivory
- Easy installation
- Top or face fix (face fix as standard)
- Low profile hardware
- Ergonomic finger-moulded handle for easy operation or optional pull tab in leather
Crossbar, handle and hold-down options
Full width crossbar for hold-down and mid-point opening
Narrow crossbar for extra compact stowage with central holddown
Full width crossbar for hold-down and mid-point opening
Narrow crossbar for extra compact stowage with central holddown
Narrow crossbar with rope pull and cleat for precise adjustment
Pegs for full width crossbar hold-down and mid-point opening
Hold-down latch fitting for central handle and narrow cross bar
Hold-down latch fitting for central handle and full width cross bar
Hold-down peg for central pull tab and narrow cross bar
Slimline cassette housing

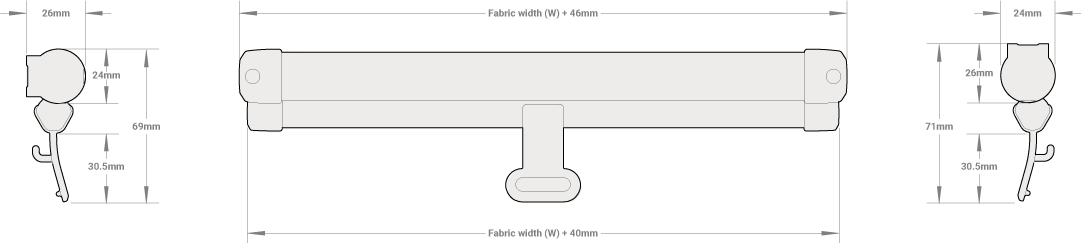

Full width crossbar with handle for compact stowage
Cassette depth: 24mm
Handle height: 30.5mm
Stowed height: 69.5mm

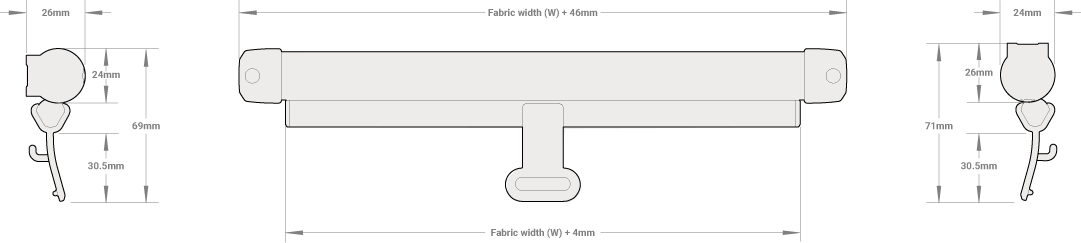

Narrow crossbar with handle for extra compact stowage
Cassette depth: 24mm
Handle height: 30.5mm
Stowed height: 65.5mm
Full width crossbar with handle for compact stowage
Cassette depth: 24mm
Handle height: 60mm
Stowed height: 99mm
Narrow crossbar with pull tab for extra compact stowage
Cassette depth: 24mm
Handle height: 60mm
Stowed height: 95mm
Cassette width = Fabric width + 45.5mm
Width (W) and drop (H) measurements are the fabric only excluding any hardware
SEASHADE Roller Mini is supplied for wall-mounting (face fix) as standard. End caps can be orientated for ceiling fix.
End cap orientation for wall fix
End cap orientation for ceiling fix
SEASHADE Roller Mini
Available in the following standard sizes
| Code | Width (W) | Drop (H) | |
|---|---|---|---|
| Seaview | S1 | 280mm | 280mm |
| Seaview | S2 | 381mm | 240mm |
| Seaview | S3 | 450mm | 315mm |
| Seaview | S4 | 503mm | 315mm |
| Seaview | S5 | 660mm | 315mm |
Minimum and maximum dimensions
| Width (W) | Drop (H) | |
|---|---|---|
| Minimum | 125mm | 85mm |
| Maximum | 1200mm | 320mm |
Hardware colour options
 |  |
| White | Ivory |
